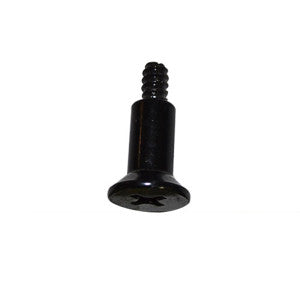

BT. Joint Bolt
A. Foot Pad
B. Inner Leg with Foot Pad
C. Lower Truss Bracket (3-Way)
D. Upper Truss Bracket (3-Way)
E. Joint Bolt and Nut with Washers
F. Truss Washer, Bolt Caps (2), Nut (1), and Bolt(1)
G. Corner Bracket (2-Way)
H. Slider Bracket (2-Way)

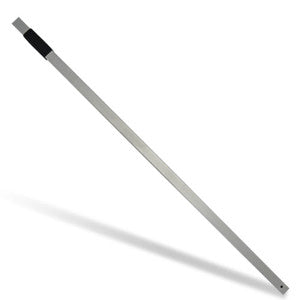

J. Outer Leg with Pull Pin Height Adjuster
K. Pull Pin Height Adjuster

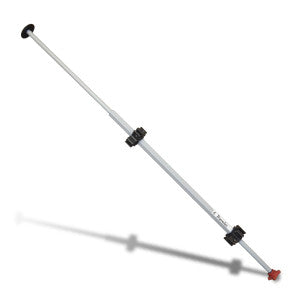

L1. Upper Peak Pole with Dome Cap
M. Upper Peak Bracket (4-Way)
O. Lower Peak Bracket (4-Way) w/ Support
L2. Lower Peak Pole with Adjustable Dial
P1. Truss Bar (Outer 39" Length

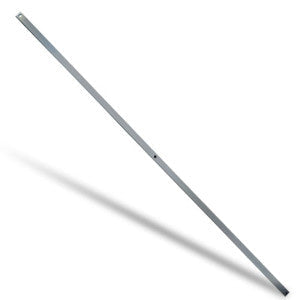

P2. Truss Bar (Inner 31" Length)
L3. Peak Pole Spring
